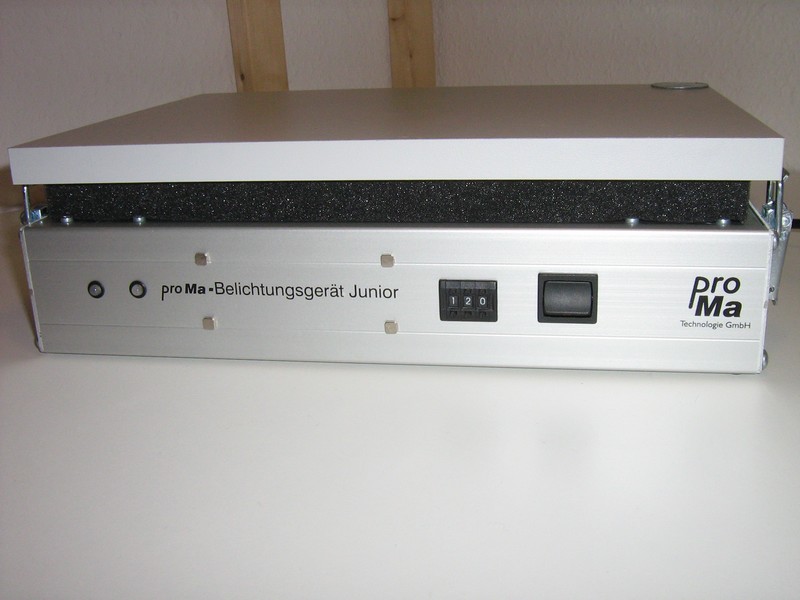

My UV exposure frame for making PCB's did not have a timer, so I built a little one and included it in the housing. It simply turns off the light after a certain time.

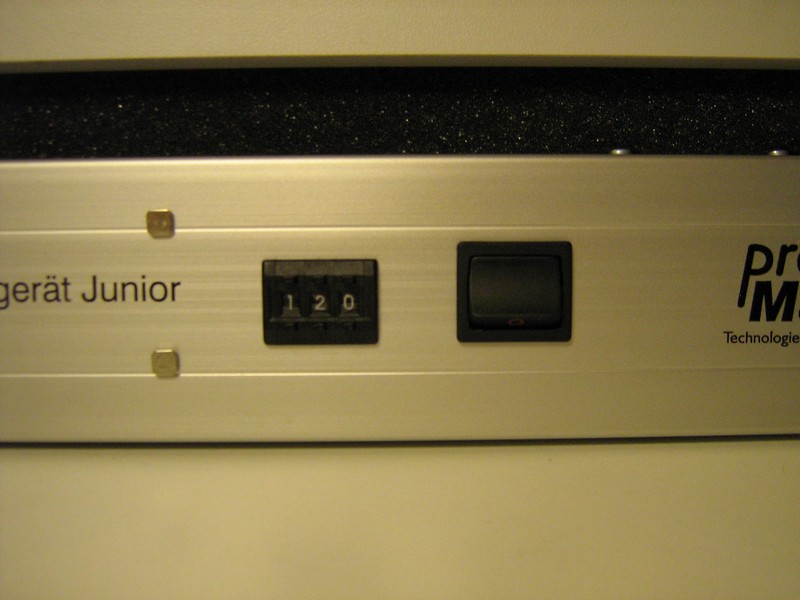

I used some old mechanical encoders to set the time. It seemed the most practical because you can see the settings without energy being applied (e.g. a 7-Seg display).

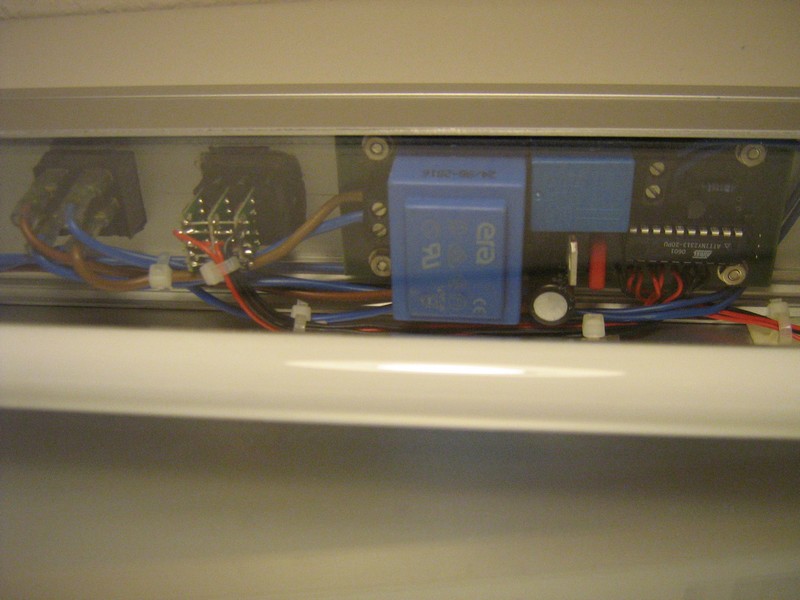

The circiut was then built into the frame with a status LED.
